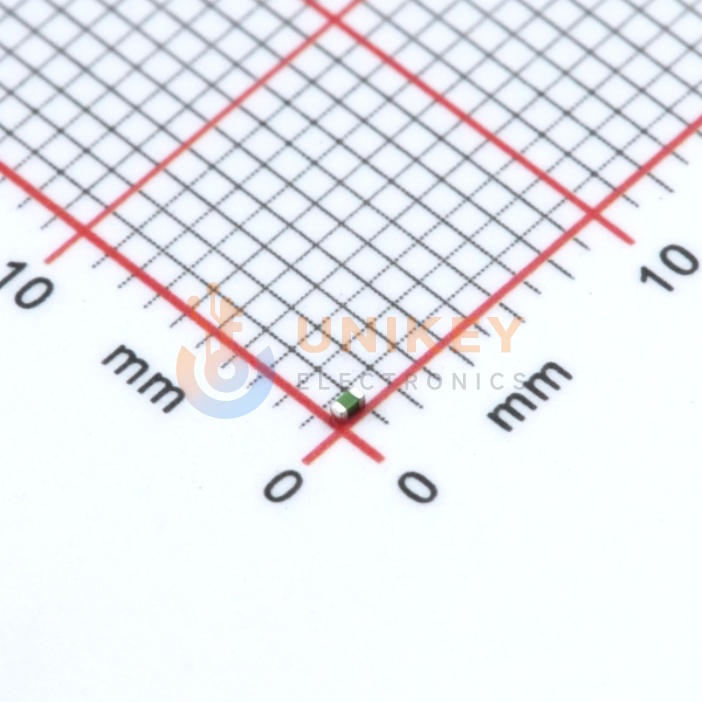

Murata LQG15HN15NJ02D image
Images are for reference only

LQG15HN15NJ02D

100MHz 2.3GHz 400mA 8@100MHz 15nH 450mΩ ±5% 0402 SMD mount 1mm*500μm*550μm

Other Names:LQG15HN15NJ02D

Manufacturer:Murata

Manufacturer Part:LQG15HN15NJ02D

Email Document
ECAD Model:

In Stock

2,456 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0175

Ext. Price (USD)

$0.87

Total price$0.87
MOQ50Mult1SPQ10,000DC2542+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0175
$0.87
500
$0.0144
$7.20
1,500
$0.0125
$18.75
10,000
$0.0095
$95.00
20,000
$0.0084
$168.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
2.3GHz
Inductance
15 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
400 mA
DC Resistance (DCR)
450mOhm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HN
Mounting Type
Surface Mount
Ratings
-
Rid
4386691
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±5%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

Murata Manufacturing LQG15HN15NJ02D is suitable for PCB designs that require a compact 0402 chip inductor with 15 nH nominal inductance, 2300 MHz minimum self-resonant frequency, and 400 mA rated current under the datasheet definition. For selection, engineers should compare the circuit’s frequency, current, DC resistance, temperature, land pattern, and reflow soldering conditions against the manufacturer specifications. Murata advises consultation before use in listed high-reliability applications.
