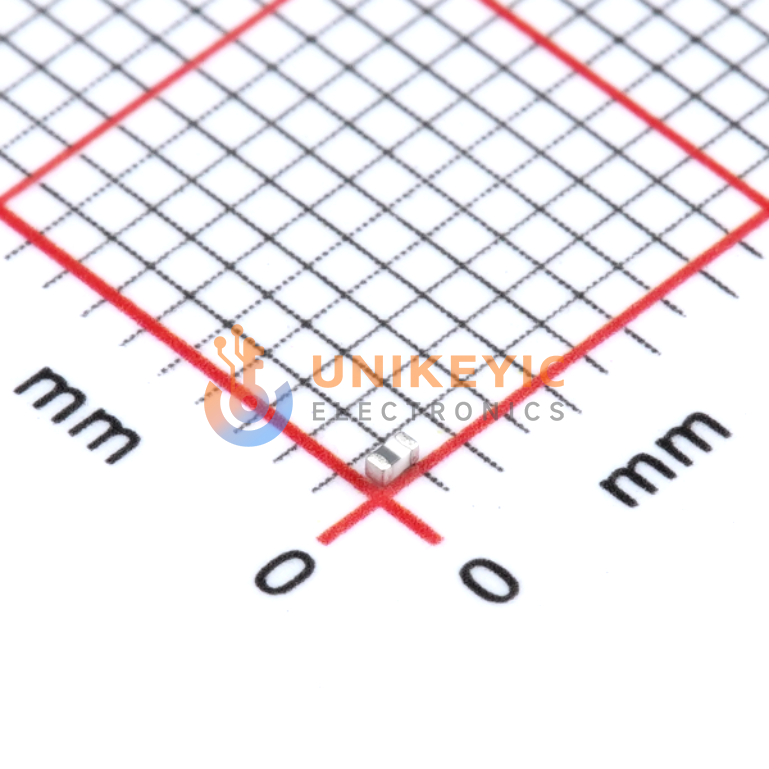

TAIYO YUDEN HK10052N4S-T image
Images are for reference only

HK10052N4S-T

Ferrite Bead 100MHz-6GHz 650mA 8Ω@100MHz 2.4nH ±0.3nH 130mΩ 0402 SMD 1mm × 500μm × 550μm

Other Names:HK10052N4S-T

more
HK10052N4ST

Manufacturer:TAIYO YUDEN

Manufacturer Part:HK10052N4S-T

Email Document
ECAD Model:

Available Stock

Available to order:50,000
Estimated Ship Time:5-12 working days

Quantity

10,000

Unit Price (USD)

$0.01

Ext. Price (USD)

$100.00

Total price$100.00
MOQ10,000Mult10,000SPQ10,000
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10,000
$0.01
$100.00
20,000
$0.0092
$184.00
40,000
$0.0087
$348.00
80,000
$0.0081
$648.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
2.4 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
650 mA
DC Resistance (DCR)
130mOhm Max
Material - Core
Ferrite
Packaging
Tape & Reel (TR)Cut Tape (CT)
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
957891
Series
HK
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.3nH
