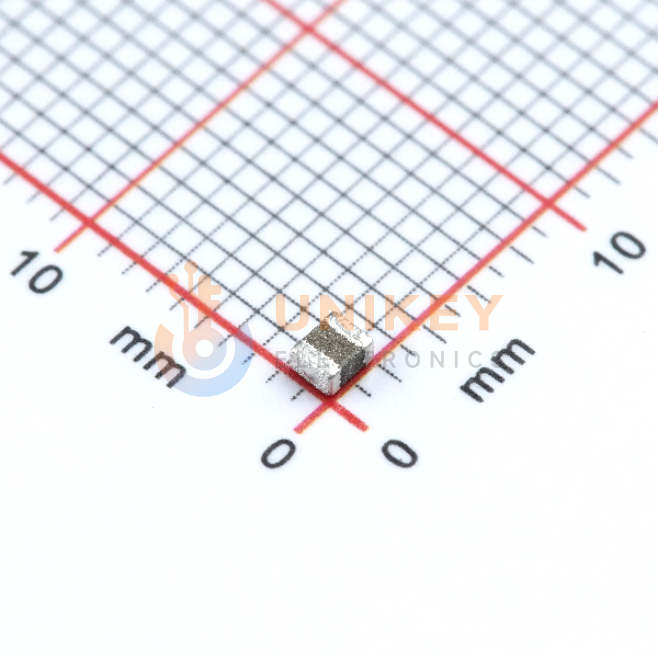

Murata DFE201612E-R24M=P2 image
Images are for reference only

DFE201612E-R24M=P2

Inductor 1MHz 6.6A 5A 240nH 19mΩ ±20% 0806 SMD 2mm × 1.6mm × 1.2mm

Other Names:DFE201612E-R24M=P2

Manufacturer:Murata

Manufacturer Part:DFE201612E-R24M=P2

Email Document
ECAD Model:

In Stock

56,524 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1054

Ext. Price (USD)

$0.52

Total price$0.52
MOQ5Mult5SPQ3,000DC2542+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1054
$0.52
50
$0.0865
$4.32
150
$0.0771
$11.56
500
$0.0701
$35.05
3,000
$0.0645
$193.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
240 nH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
6.6A
Operating Temperature
-40°C ~ 125°C
Current Rating (Amps)
5 A
DC Resistance (DCR)
19mOhm Max
Material - Core
Metal
Height-Seated (Max)
0.047" (1.20mm)
Package/Case
0806 (2016 Metric)
Size / Dimension
0.079" L x 0.063" W (2.00mm x 1.60mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
DFE201612E
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
13692935
Series
DFE18SBN
Supplier Device Package
0806
Tolerance
±20%
