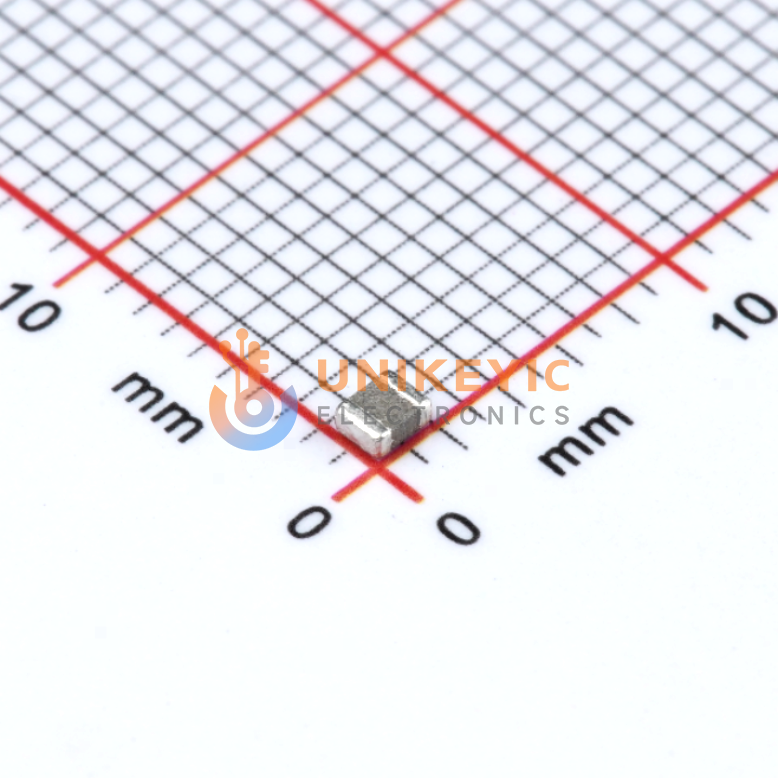

Murata DFE201610P-1R5M=P2 image
Images are for reference only

DFE201610P-1R5M=P2

Inductor 1MHz 2.5A 2.5A 1.5μH 110mΩ ±20% 0806 SMD 2mm × 1.6mm × 1mm

Other Names:DFE201610P-1R5M=P2

more
DFE201610P1R5M=P2

Manufacturer:Murata

Manufacturer Part:DFE201610P-1R5M=P2

Email Document
ECAD Model:

In Stock

2,892 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1192

Ext. Price (USD)

$0.59

Total price$0.59
MOQ5Mult5SPQ3,000DC2532+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1192
$0.59
50
$0.0895
$4.47
150
$0.0716
$10.74
500
$0.0646
$32.30
1,000
$0.0597
$59.70
3,000
$0.0555
$166.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
1.5 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 125°C
Current Rating (Amps)
2.5 A
DC Resistance (DCR)
110mOhm Max
Material - Core
Iron Powder
Height-Seated (Max)
0.039" (1.00mm)
Package/Case
0806 (2016 Metric)
Size / Dimension
0.079" L x 0.063" W (2.00mm x 1.60mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
DFE201610P
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
5247219
Series
DFE201610P
Supplier Device Package
0806 (2016 Metric)
Tolerance
±20%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

According to the manufacturer datasheet, Murata Manufacturing DFE201610P-1R5M=P2 follows the catalog pattern DFE201610P-1R5M#, where “#” represents the packaging specification code. DFE201610P is the series name, the electrical value is 1.5μH±20%, and the size code is 0806 (2016). The =P2 suffix indicates 180mm embossed tape packaging with a minimum order quantity of 3000.
