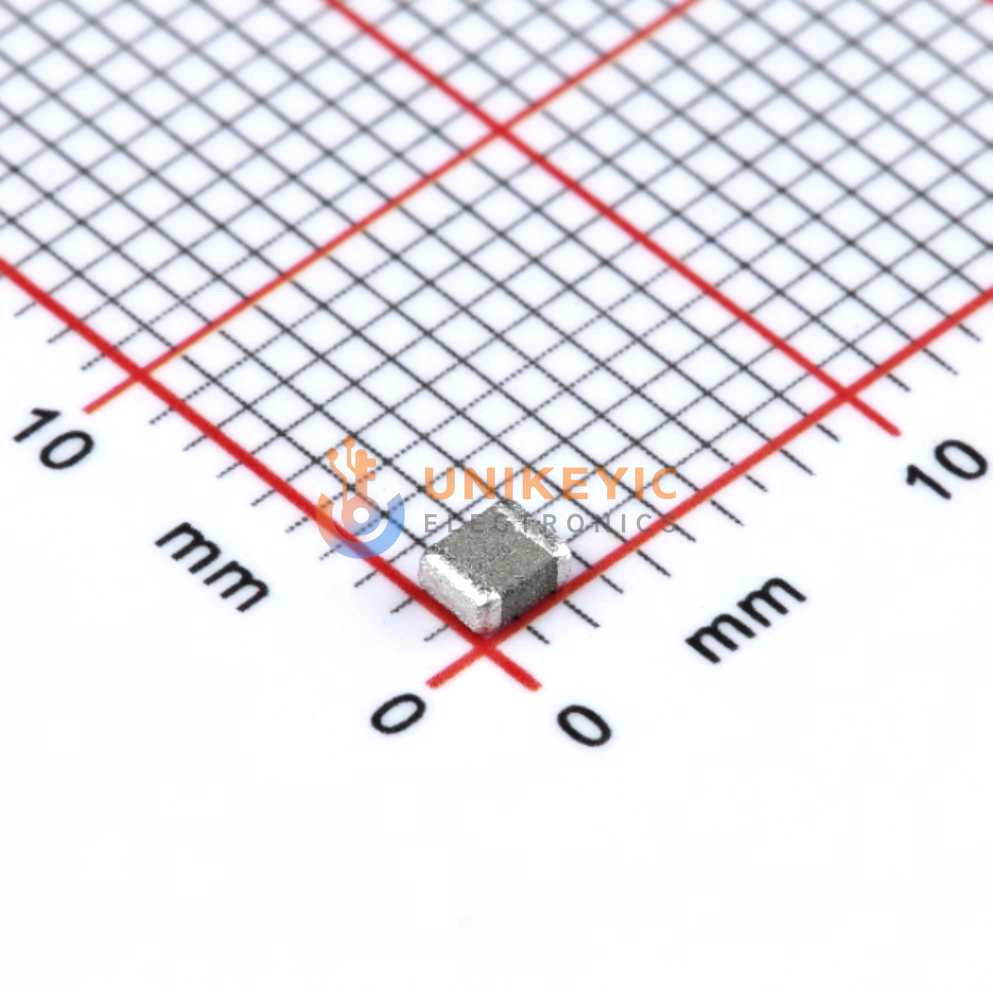

Murata 1239AS-H-2R2M=P2 image
Images are for reference only

1239AS-H-2R2M=P2

1MHz 2.2A 2A 2.2μH 108mΩ ±20% 1008 SMD mount 2.5mm*2mm*1.2mm

Other Names:1239ASH2R2M=P2

more
1239AS-H-2R2M=P2

Manufacturer:Murata

Manufacturer Part:1239AS-H-2R2M=P2

Email Document
ECAD Model:

In Stock

25,193 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1121

Ext. Price (USD)

$0.56

Total price$0.56
MOQ5Mult5SPQ3,000DC2637+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1121
$0.56
50
$0.0921
$4.60
150
$0.0821
$12.31
500
$0.0746
$37.30
3,000
$0.0574
$172.20
6,000
$0.0544
$326.40
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
2.2 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
2.2A
Operating Temperature
-40°C ~ 85°C
Current Rating (Amps)
2 A
DC Resistance (DCR)
108mOhm Max
Material - Core
Iron Powder
Height-Seated (Max)
0.047" (1.20mm)
Package/Case
1008 (2520 Metric)
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
1239AS
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
5272080
Series
DFE252012C
Supplier Device Package
1008 (2520 Metric)
Tolerance
±20%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The datasheet for Murata Manufacturing 1239AS-H-2R2M=P2 is the DFE252012C metal alloy power inductor document that includes the exact part number in its standard part number list. It provides the package dimensions, operating temperature range, reel quantity, electrical ratings, and measurement conditions needed for engineering review and purchasing checks.
