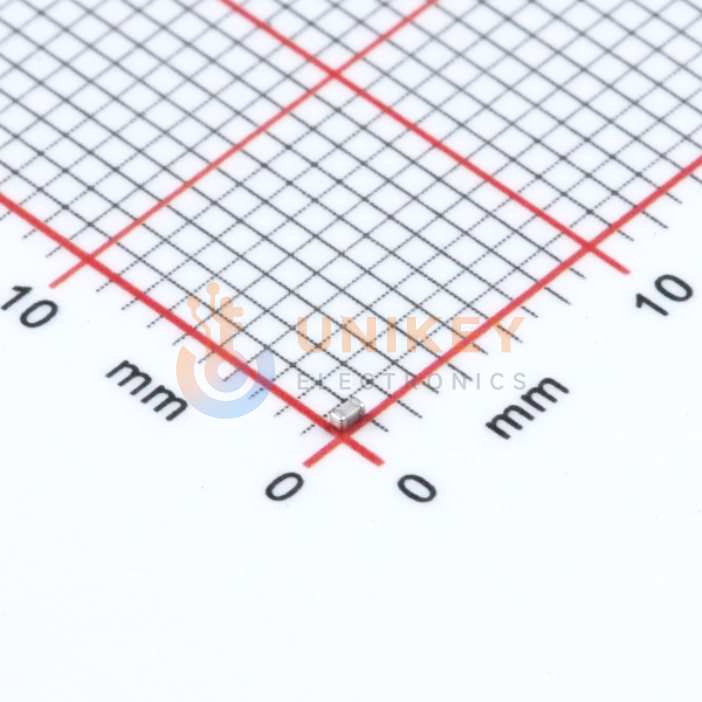

Murata GJM1555C1H4R7BB01D image
Images are for reference only

GJM1555C1H4R7BB01D

MLCC 4.7pF ±0.1pF C0G(NP0) 50V 0402 SMD, 1mm × 500μm × 500μm

Other Names:GJM1555C1H4R7BB01D

Manufacturer:Murata

Manufacturer Part:GJM1555C1H4R7BB01D

Email Document
ECAD Model:

In Stock

138 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0164

Ext. Price (USD)

$0.82

Total price$0.82
MOQ50Mult5SPQ10,000DC2611+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0164
$0.82
500
$0.0133
$6.65
1,500
$0.0115
$17.25
10,000
$0.0105
$105.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Manufacturer
Capacitance
4.7 pF
Voltage-Rated
50V
Operating Temperature
-55°C ~ 125°C
Lead Style
-
Height-Seated (Max)
-
Lead Spacing
-
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max)
0.022" (0.55mm)
Applications
RF, Microwave, High Frequency
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Temperature Coefficient
C0G, NP0
Base Product Number
GJM1555C1H
Features
High Q, Low Loss
Mounting Type
Surface Mount, MLCC
Ratings
-
Series
GJM
Tolerance
±0.1pF

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

Murata Manufacturing GJM1555C1H4R7BB01D is positioned as a High-Q chip monolithic ceramic capacitor for general electronic equipment, and the available product specifications list RF, microwave, and high-frequency applications. For frequency-sensitive designs, engineers should check the 4.7 pF value, C0G(EIA) behavior, DC 50 V rating, operating temperature range, and the listed GJM03/GJM15 ESR condition of 300mΩ maximum for 1pF < C ≦ 5pF at 1.0±0.2GHz and room temperature.
