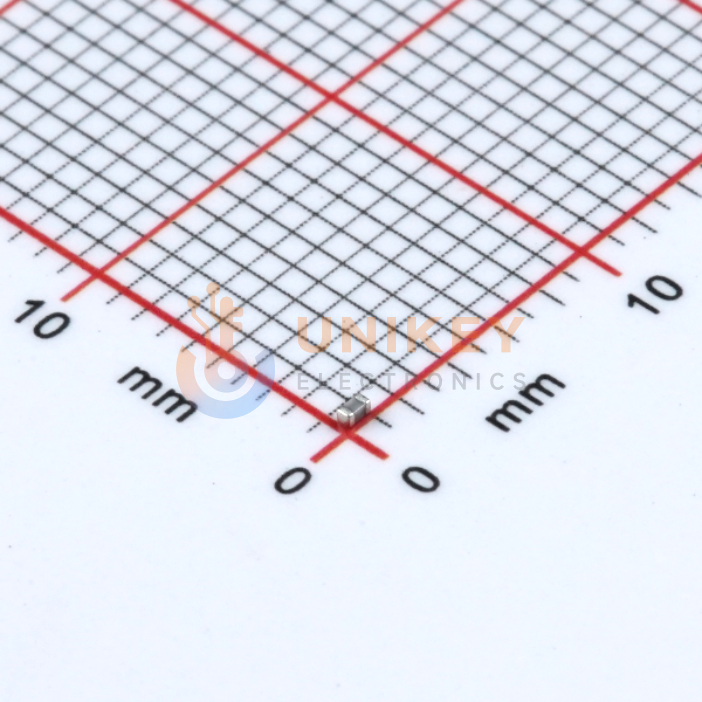

Murata GCM1555C1H220FA16D image
Images are for reference only

GCM1555C1H220FA16D

MLCC, 22pF ±1%, C0G(NP0), 50V, 0402, SMD, 1mm × 500μm × 500μm

Other Names:GCM1555C1H220FA16D

Manufacturer:Murata

Manufacturer Part:GCM1555C1H220FA16D

Email Document
ECAD Model:

In Stock

87,994 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.021

Ext. Price (USD)

$1.05

Total price$1.05
MOQ50Mult50SPQ10,000DC2634+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.021
$1.05
500
$0.0173
$8.65
1,500
$0.0153
$22.95
10,000
$0.0135
$135.00
20,000
$0.0125
$250.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance
22 pF
Voltage-Rated
50V
Failure Rate
-
Operating Temperature
-55°C ~ 125°C
Lead Style
-
Height-Seated (Max)
-
Lead Spacing
-
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max)
0.022" (0.55mm)
Applications
Automotive
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Temperature Coefficient
C0G, NP0
Base Product Number
GCM1555C1H
Features
-
Mounting Type
Surface Mount, MLCC
Ratings
AEC-Q200
Rid
7363195
Series
GCM
Tolerance
±1%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

Murata’s part number structure helps decode GCM1555C1H220FA16D into key ordering and specification elements. The datasheet shows the sequence as GCM / 15 / 5 / 5C / 1H / 220 / F / A16 / D, covering series, L/W dimensions, thickness, temperature characteristic, rated voltage, nominal capacitance, capacitance tolerance, Murata control code, and packaging code. For this exact part, the listed values include 22 pF, DC 50 V, ±1%, and packaging code D.
