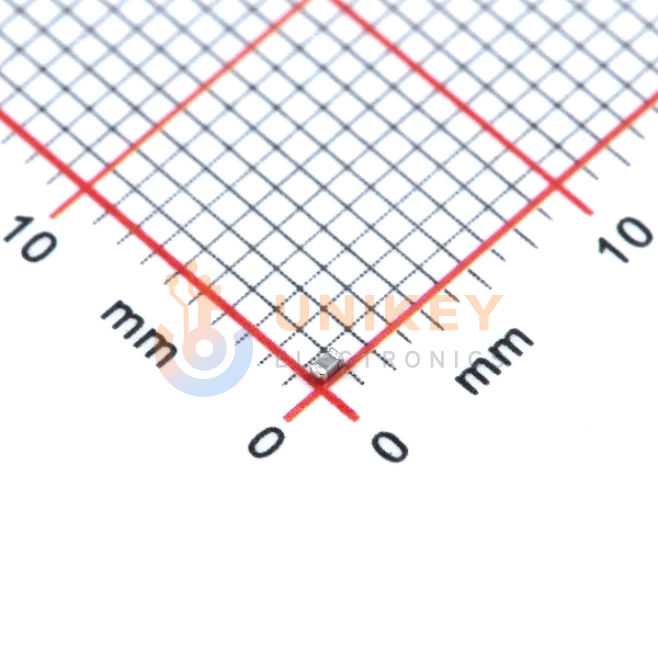

Murata GCM1555C1H180FA16D image
Images are for reference only

GCM1555C1H180FA16D

MLCC, 18pF ±1%, C0G(NP0), 50V, 0402, SMD, 1mm × 500μm × 500μm

Other Names:GCM1555C1H180FA16D

Manufacturer:Murata

Manufacturer Part:GCM1555C1H180FA16D

Email Document
ECAD Model:

In Stock

42,703 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0223

Ext. Price (USD)

$0.11

Total price$0.11
MOQ5Mult5SPQ10,000DC2615+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0223
$0.11
50
$0.0161
$0.80
500
$0.0135
$6.75
1,000
$0.0113
$11.30
4,000
$0.0099
$39.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance
18 pF
Voltage-Rated
50V
Failure Rate
-
Operating Temperature
-55°C ~ 125°C
Lead Style
-
Height-Seated (Max)
-
Lead Spacing
-
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max)
0.022" (0.55mm)
Applications
Automotive
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Temperature Coefficient
C0G, NP0
Base Product Number
GCM1555C1H
Features
-
Mounting Type
Surface Mount, MLCC
Ratings
AEC-Q200
Rid
7363201
Series
GCM
Tolerance
±1%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing GCM1555C1H180FA16D in high-frequency circuit selection, use the listed ratings as design limits to verify rather than as a performance guarantee. The manufacturer datasheet specifies 50Vdc rated voltage, -55 to 125℃ operating range, C0G(EIA) characteristic, 0±30ppm/℃ coefficient, and 18pF ±1% capacitance. It does not provide impedance, ESR, or frequency-characteristic curves, so engineers should confirm those parameters in the full manufacturer specification before final use.
