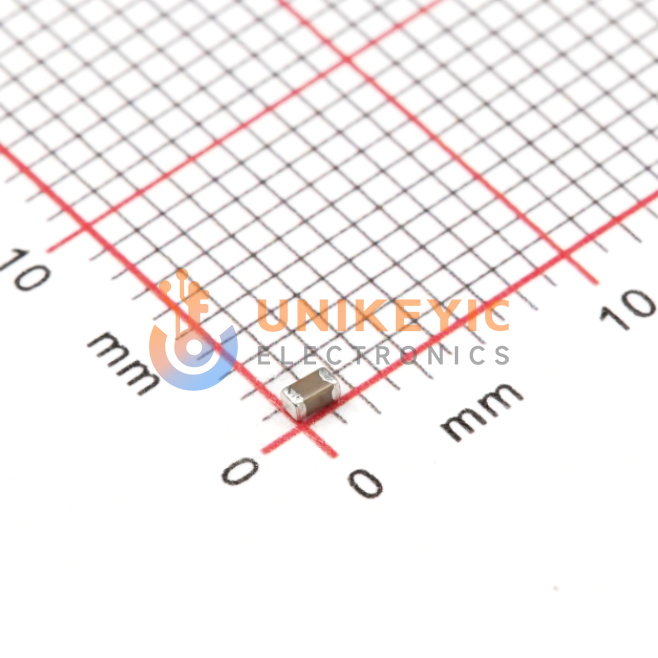

Murata GCJ188R71H104KA12D image
Images are for reference only

GCJ188R71H104KA12D

MLCC 100nF ±10% X7R 50V 0603 SMD 1.6mm × 800μm × 900μm

Other Names:GCJ188R71H104KA12D

more
GCJ188R71H104KA12D

Manufacturer:Murata

Manufacturer Part:GCJ188R71H104KA12D

Email Document
ECAD Model:

In Stock

511,796 In stock, ready to ship

Quantity

20

Unit Price (USD)

$0.026

Ext. Price (USD)

$0.52

Total price$0.52
MOQ20Mult20SPQ4,000DC2608+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.026
$0.02
4,000
$0.023
$92.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance
0.1 µF
Voltage-Rated
50V
Operating Temperature
-55°C ~ 125°C
Lead Style
-
Height-Seated (Max)
-
Lead Spacing
-
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max)
0.035" (0.90mm)
Applications
Automotive, Boardflex Sensitive
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Temperature Coefficient
X7R
Base Product Number
GCJ188R71H
Features
Soft Termination
Mounting Type
Surface Mount, MLCC
Ratings
AEC-Q200
Rid
2783823
Series
GCJ
Tolerance
±10%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For the Murata Manufacturing GCJ188R71H104KA12D, the manufacturer datasheet specifies reflow as the soldering method. The documentation advises preheating the components and PCB to reduce sudden temperature change, keeping the temperature differential as small as practical, and controlling solder paste amount so the termination is soldered smoothly. For the GCJ18 1.6×0.8 mm case, use the datasheet land-dimension guidance and confirm the final footprint with the actual PCB and assembly process.
