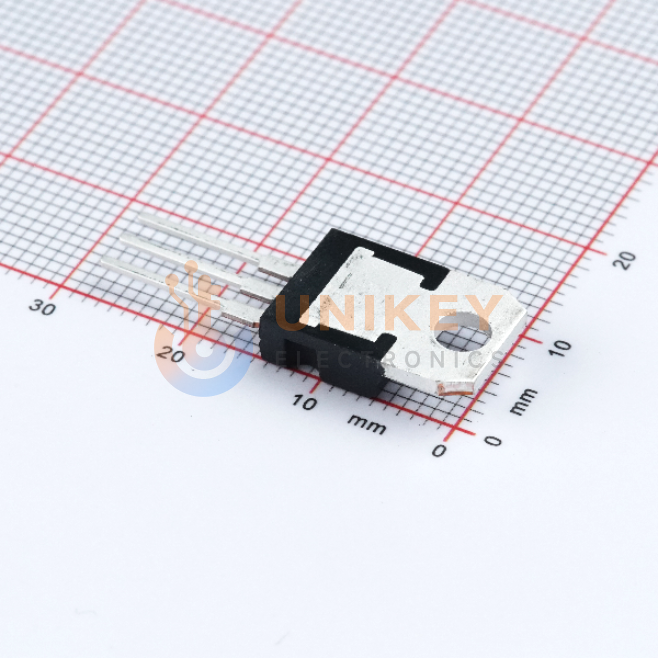

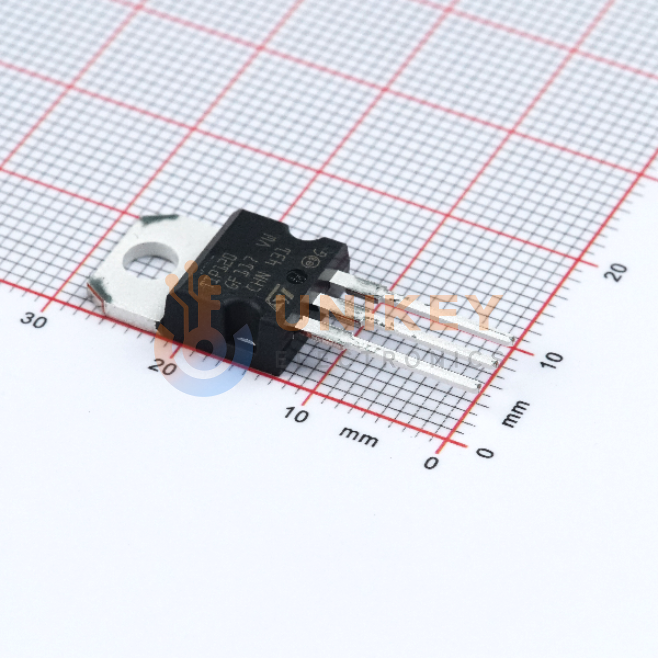

TIP120
NPN Darlington Transistor 4V@20mA 5A 2W 5V 500μA 60V 60V 5A TO-220AB TH 9.15mm H
Other Names:TIP120
Manufacturer:STMicroelectronics
Manufacturer Part:TIP120
Email Document
In Stock
3,750 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.3484
Ext. Price (USD)
$0.34
Total price$0.34
MOQ1Mult1SPQ50DC2623+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.3484
$0.34
1,000
$0.3326
$332.60
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Manufacturer | |
| Frequency - Transition | - |
| Current - Collector Cutoff (Max) | 500µA |
| Current - Collector (Ic) (Max) | 5 A |
| DC Current Gain (hFE) (Min) @Ic, Vce | 1000 @ 3A, 3V |
| Power - Max | 2 W |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 20mA, 5A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Operating Temperature | 150°C (TJ) |
| Transistor Type | NPN - Darlington |
| Packaging | Tube |
| Package/Case | TO-220-3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | TIP120 |
| Mounting Type | Through Hole |
| Series | - |
| Supplier Device Package | TO-220 |
Frequently Asked Questions (FAQs)
The manufacturer datasheet lists the STMicroelectronics TIP120 family for general purpose linear and switching applications. For project selection, engineers should verify that the load current, voltage, and thermal conditions fit the TIP120 limits, including 5 A collector current, 60 V collector-emitter voltage, and 150 °C maximum operating junction temperature. The device is supplied as a through-hole TO-220 component, which is relevant for board layout and thermal planning.
