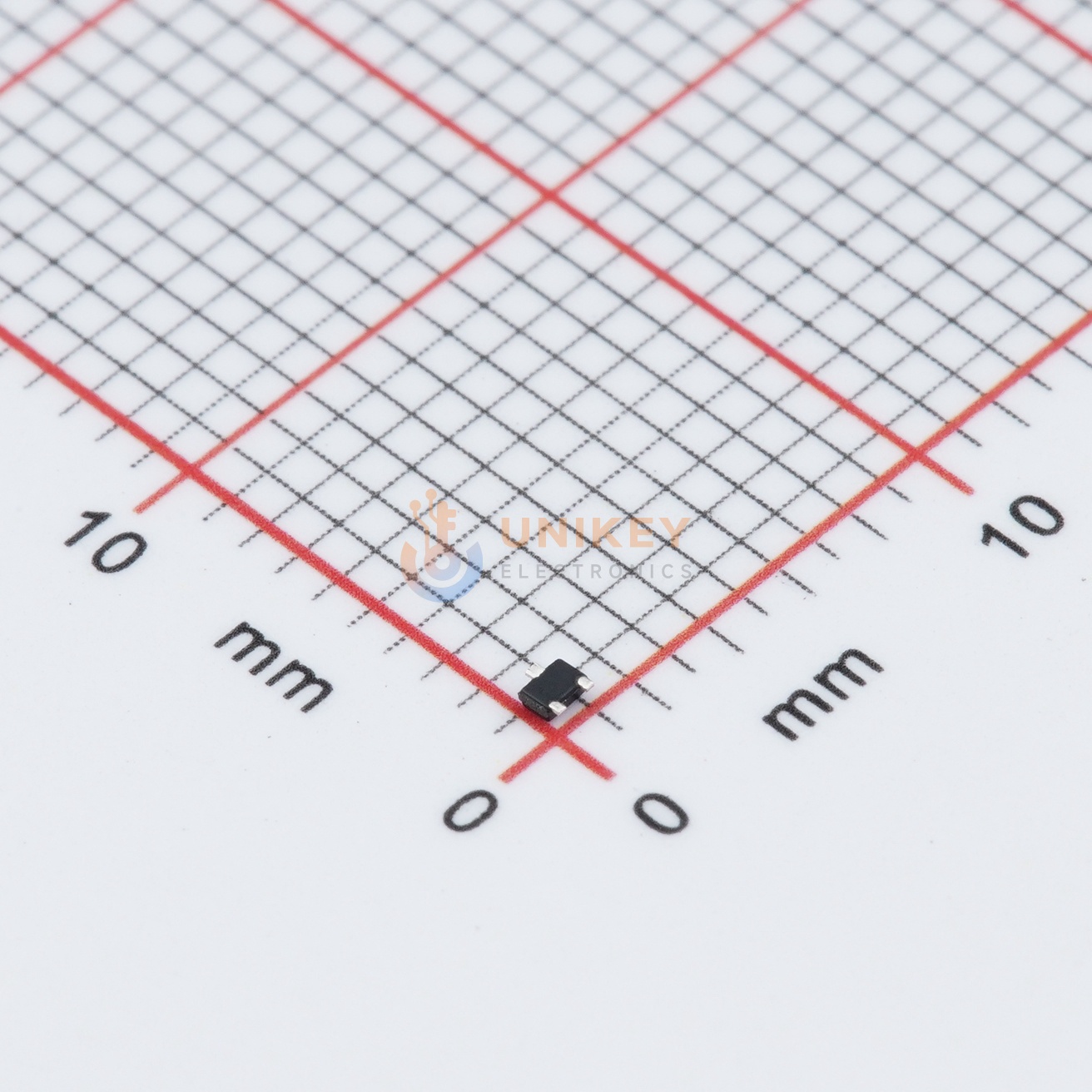

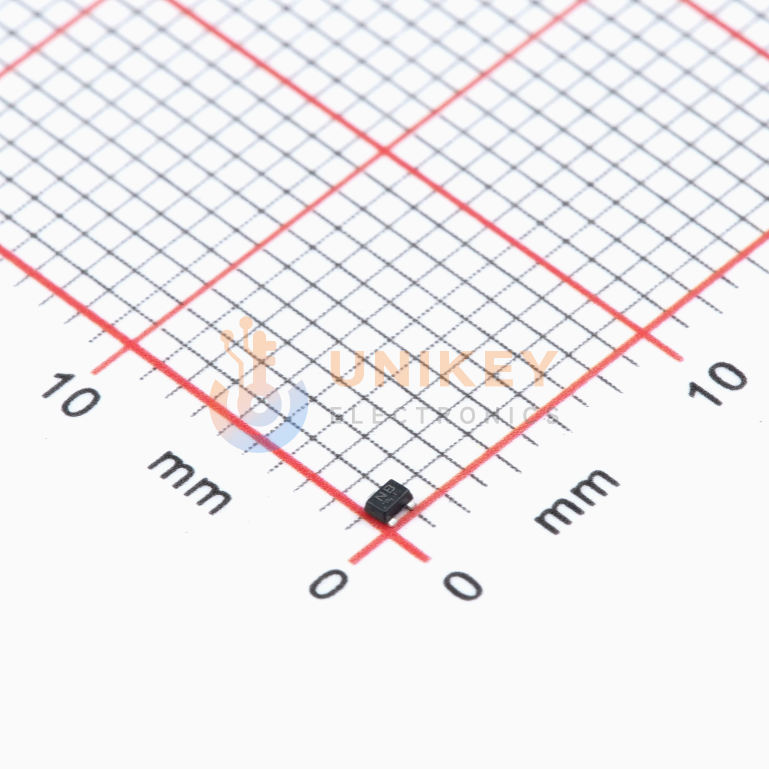

ROHM Semiconductor 2SCR523MT2L image
Images are for reference only

2SCR523MT2L

NPN Transistor 300mV@5mA,50mA 150mW 5V 100nA 50V 50V 100mA VMT-3 SMD 450μm H

Other Names:2SCR523MT2L

more
2SCR523M

Manufacturer:ROHM Semiconductor

Manufacturer Part:2SCR523MT2L

Email Document
ECAD Model:

In Stock

14,494 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0942

Ext. Price (USD)

$0.09

Total price$0.09
MOQ1Mult1SPQ8,000DC26+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0942
$0.09
500
$0.0315
$15.75
4,000
$0.0208
$83.20
8,000
$0.0172
$137.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Transition
350MHz
Current - Collector Cutoff (Max)
100nA (ICBO)
Current - Collector (Ic) (Max)
100 mA
DC Current Gain (hFE) (Min) @Ic, Vce
120 @ 1mA, 6V
Power - Max
150 mW
Vce Saturation (Max) @ Ib, Ic
300mV @ 5mA, 50mA
Voltage - Collector Emitter Breakdown (Max)
50 V
Operating Temperature
150°C (TJ)
Transistor Type
NPN
Package/Case
SOT-723
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
2SCR523
Mounting Type
Surface Mount
Series
-
Supplier Device Package
VMT3
